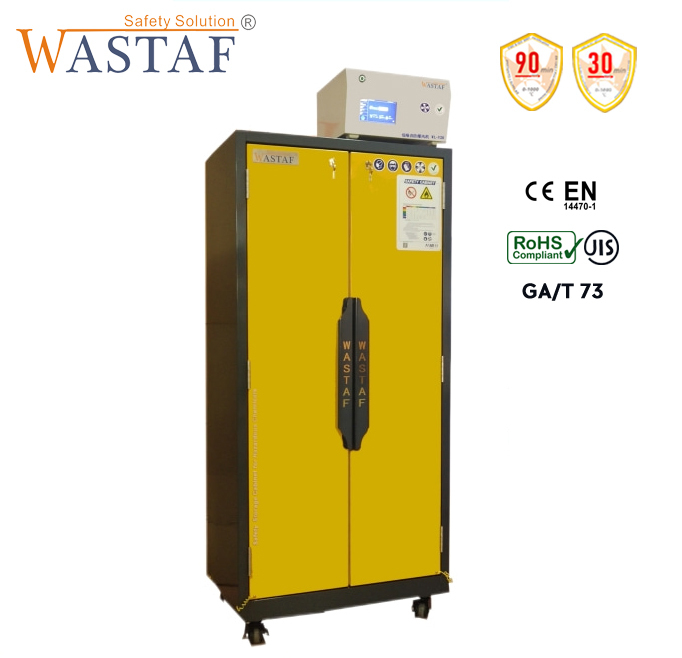

WASTAF Fire Resistance Safety Cabinet

Function/Structure:

- Body: 1.5mm thick steel plate coated with acid and alkali resistant fireproofing painting.

- Embedded multilayer composite fire resistance material, isolating flame and high temperature effectively.

- When the ambient temperature exceeds 50℃, the cabinet door automatically closes.

- The valve automatically closes when the temperature exceeds 70℃.

- Equipped with electrostatic grounding terminal to eliminate electrostatic hazards.

- Rear ventilation and exhaust mode, used for connecting with the ventilation system.

The cabinet has passed 900-1000℃ fire test of EN 14470-1 standard with type 30 and type 90. Also complies with ROHS, GA/T73, CE, OSHA29 CFR 1910.106, NFPA 30 9.5 and the implementation of EPA requirements.

Circulating Filtration System

Function/Structure

- Dimension: 450x250x300mm

- Voltage 220V, power 122 W,50HZ

- Exhaust air capacity 55 m³/h

- Steel construction, inner structure is made of corrosion resistant material

- 7-inch LCD touching display

- WLF301 Acid Filter

- TVOC gas monitoring, temperature and humidity monitoring,

   Fault detection, air volume detection and other functions
