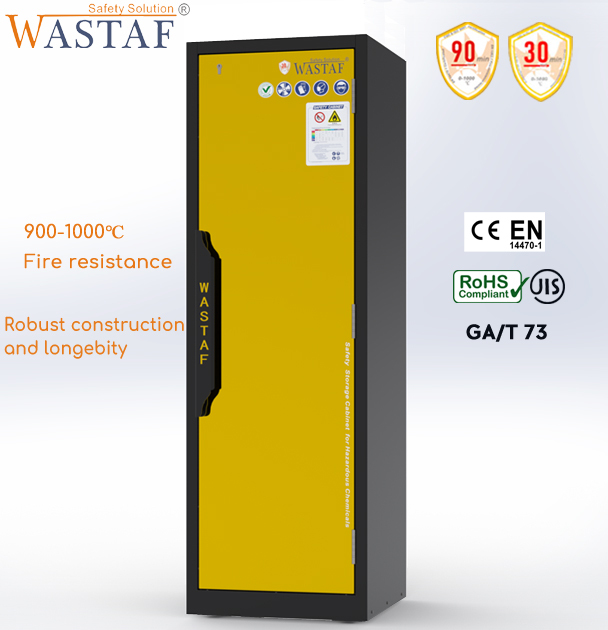

Model: WL-F30060 type 30 & type 90

Door Type: single door

Structure: multi-layer fire resistance structure

Specifications: 600 x 600 x 1950mm

Material: 1.5mm sheet steel

The main body is made of 1.5mm sheet steel. The cabinet is coated with acid and alkali resistance fireproof painting, which can effectively isolate the flame and high temperature. The cabinet has passed EN 14470-1 fire test with type 30 and type 90. It complies with ROHS, GA/T73, CE, etc. It is in accordance with OSHA29 CFR 1910.106, NFPA 30 9.5 and the implementation of EPA requirements.

Anti-toppling Leakage Collection Shelf

Each shelf is independent for leakage collecting, load bearing 75kg/㎡. The shelf is combined with conducting electrostatic polyethylene, which will strengthen the corrosion resistance of the shelf. Maximum capacity of the shelf is 32L.

Fire Resistance Structure

With the thermal closure system, the cabinet door automatically closes when the ambient temperature exceeds 50℃. When the temperature exceeds 70℃, the exhaust valve automatically closes.   When the temperature exceeds 110℃, the door seam is sealed by thermal expansion rubber strips. In case of power failure or emergency, users can get fast reactions with the luminous waterproof safety sign.

Additional Technical Services:

- Chemical hazard grading service

- Chemical risk identification and data information support

- Chemical operation specification training support

- Safety technical consultation and evaluation support

Optional Configuration:

- Steel leakage reservoir plate - anti-toppling

- Exhaust system with absorbing filter

- Suppressive fire extinguisher - Electrostatic connection kit - electronic lock

Optional Technical Services

Chemical hazard grading service support

Chemical risk identification and data information support

Chemical operation specification training support

Safety technical consultation and evaluation support
